YAK 55M 28%

We are pleased to introduce our new version SU 29 - 37%, designed together with Sebastiano Silvestri. With this model, we are continuing with a new trend the ailerons and the rudder shape. Extremely high prefabrication, clean design and excellent flying characteristics is our standard.

Specs

Wingspan Lenght Weight dm2 g/dm2 ccm rc
2250mm 2080mm 7.5-8.5kg 155.5 109.3 50-60 6 ch

DESCription

Was used same platform in the big brother 33%. This airplane was develop for the 50-60 cc gas and the 4-5kW electric engines too. Model is for all diehards and sport pilots, flying either scale aerobatics or 3D .

This new parts was develop for better flying and easy set up. Airplane flying now much more clear and easy. Rools and snaps is exact and perfects. You don´t need any differential ailerons control.

The rudder have much better efficiency in slow flight and his shape use "airbrake system" too.


So, few things to point out.....

  • You can see some of nice and practical poins concerning build airplane :

  • Canopy opening is much larger for easy access and installation.

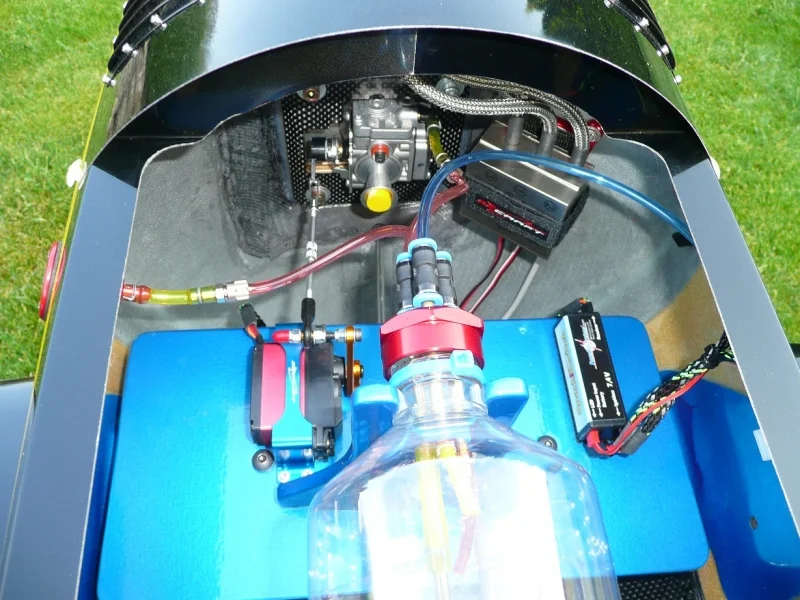

  • Integrated composite tray for Rx, batteries, rudder servos,etc.

  • All composite landing gear plate, integrated into fuselage.

  • And as always, a large open area in fuselage, when you remove canopy!

  • Easy access to everything for easy maintenance and quick check up before flight.

High prefabrication and perfect workmanship of this ARF!

  • Carbon fiber firewall.

  • C/F wing tubeand stab tubes +  C/F landing gear

Recomendation Accessories:

ELECTRO power :     HACKER A80 / 10+  MasterSpin Opto 180A+  prop 2bl. 24x10+ 10 cell 4500mA FuelPower.

GAS power:  DA60 , DLE55 + KS muffler set + 500ml fuel tank

Servos :
2x .......... JR DS8915(or DS8425)    -  stabilizators
2x .......... JR DS8915(or DS8425)    -  ailerons
1x ...........JR DS8915     -  rudder

And this is what has been done for you:

1- wings, elevators and rudder are installed
2- pre drilled the rudder hinges
3- clear canopyis glued into frame.
4- Cowl installed, using 4 x M5 bolts.
5- Landing gear is pre drilled
6- All control horns openings are pre cut for our CNC
7- sign points on the fuselage for rudder wires

Total weight the kit include hardware is 3,8 Kg.

There a line of accessories available for this airplane, such as spinner, wing covers, wheels,etc.All of them are listed on order form.

Included in the kit:

Composite parts- fuselage with integrated formers, wings, elevators, rudder, cowl, canopy, wheel pants , landing gear
No composite parts -  wheel axles, bolts, control horns

We have managed to cut down time needed to complete this airplane and you should be able to have airplane ready to fly in less then 30 hours.

Not bad, right?

Kit includes:

composite parts:  fuselage, canopy frame with silver canopy, cowl, rudder,elevator,wings,wheel pants.

accessories: wheel axles and CNC cut control horns.

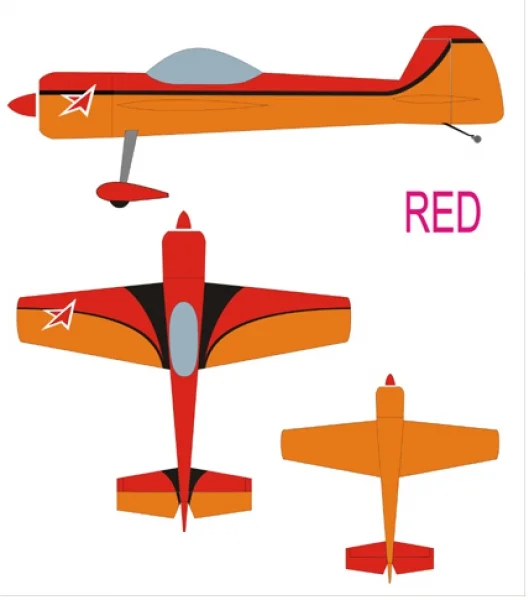

COLOR SCHEMES

Video

Gallery
