EXTRA 330LX 37%

The 37% Extra 330LX was designed by KRILL MODELS and Gernot Bruckmann . The design is similar to the "SC" version and the new Extra 330LX is a near perfect scale model of the popular Extra 330LX by Mr. Walter Extra.

Specs

Wingspan Length Weight dm2 g/dm2 ccm rc
2980mm 2730mm 17-18kg 150 113 150-200 5 ch

DESCription

Now available in three NEW colour schemes 2018-2020 :

1.    GBM - in 4 different colour combinations

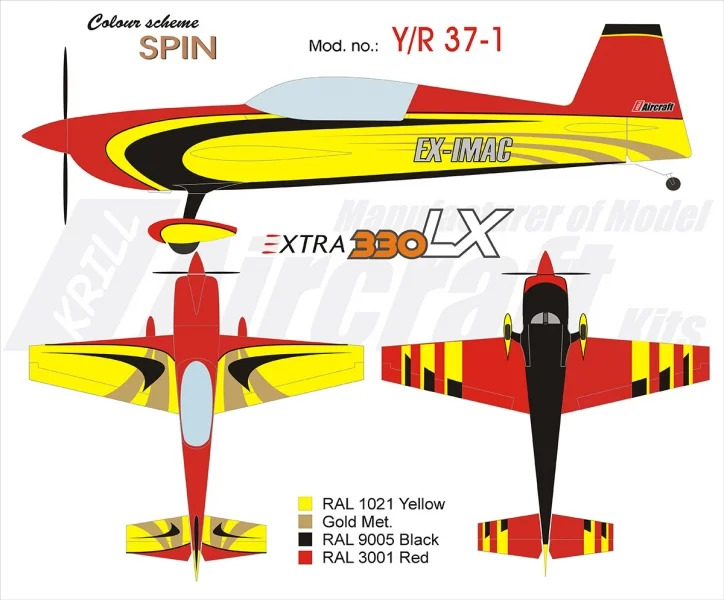

2.    SPIN  - in 4 different colour combinations
3.    CHC  - in 6 different colour combinations

It’s time for a revolution in the 30% aircraft size .

KRILL Model had developed a many new high level modifications for this 37% sized aircraft.
We have developed a much lighter composite structure and parts , incorporated a new designed for the ABS RC tray with a combination of strengthening parts that have been pre-fitted into the fuselage.

This design is very practical with a truly professional look and finish.

While developing the Extra 330LX this plane with Gernot, we had one major consideration.

WEIGHT!

We wanted to develop an extremely light and special airplane designed for precision flying (IMAC, F3M) with a cost effective set up!

The new Extra 330LX has been designed to use fewer servos and smaller engines. You can use 150cc and upwards depending on your own requirements.

This is a purely precision designed machine and not designed for 3D!

Below are some details of the new Extra 330LX airframe:

  • The wings , rudder , and elevators have central hinged control surfaces.

  • Each Aileron uses two servos , Each elevator uses one servo per side, The rudder only requires the use of two servos. One servo required on the throttle with 9 servos in total being required, this in essence is a 35% aircraft servo installation.

  • The underside of the motor dome has been specially designed to aid in efficient engine cooling.

  • The landing gear covers (skirts) are integrated into fuselage finishing off the fuselage with some scale detail.

  • Included are carbon fibre main wing tube and stab tubes.

  • The blue tinted canopy glass is pre-bonded into the canopy frame.

  • The cowling and UC gear is pre-installed.

  • The firewall is set up for 170-190 cc engines. For an extra charge we offer a set up for 4-cylinder engines ( see order form no.: WT0012-01 ) this includes pre-installed reinforcement in the tail for the servos, modified firewall for the longer engine and the rudder control horn inside the fuzz is not installed on the integrated Rc tray.Included in the kit is a tail wheel assembly and two main wheels.(120mm)

  • We offer modify the split cowl ( no.: WT0012-02 ) also

  • We offer 3 different type of spinners. ( Painted, Carbon or Silver carbon)

  • The firewall is set up for 170-190 cc engines. For an extra charge we offer a set up for 4-cylinder engines ( see order form)

  • Right Thrust has already been pre-set.

  • Integrated Rc tray included with pre-installed Alu Rudder horn, with the option of the use of a direct rudder servo setup depending on the type of engine installed.

  • The C/F landing gear and wheel pants are designed for very easy assembly !

Extra 330LX Kit contents.

  • airframe

  • pre-installed canopy bonded in to the canopy frame

  • landing gear

  • wheel pants

  • Carbon wing and stab tubes.


    Hardware included :

  • 2x 120mm wheels.

  • 1x tail wheel Extra 41%

  • wings screws

  • Rudder tray horn 117mm installed

  • Set CNC control horns
